IR Receiver & Sensor

model:DW-306

INFRARED WIRELESS RECEIVER

Description:

● 3-channels design, allowing 2 infrared microphones and 1 infrared flipping remote controller running simultaneously (touchscreen writing, red/green laser, PPT flipping).

● Advanced IPM power management technology. Microphone enters sleep mode automatically after 1 second of inactivity, and will be reactivated upon any movement is detected.

● Supports USB camera input.

● Built-in digital sound card which enables recording or online broadcasting

● Built-in IR sensor to loudspeakers for much easier installation

● Rated output power: (8Ω) 4x70W; (4Ω) 4x130W, goes with Max. 8 speakers.

DW-306 IR Mic Amplifier

Infrared Wireless Channels

3 channels
Selectable Frequency

3
Frequency Response

<0.05%
THD

50Hz~20KHz±3dB
S/N

≥78dB(MIC1.2),≥80dB(LINE),≥98dB(IR MIC)
Dynamic Range

100dB
Frequency Stability

±0.005%(-10℃-40℃)
Rated Power

(8Ω)4×70W:(4Ω)4×130W
Input Sensitivity

20mV(MIC1.2),700mV (LINE)
Input Impedance

22KΩ(MIC1.2),390Ω(LINE)

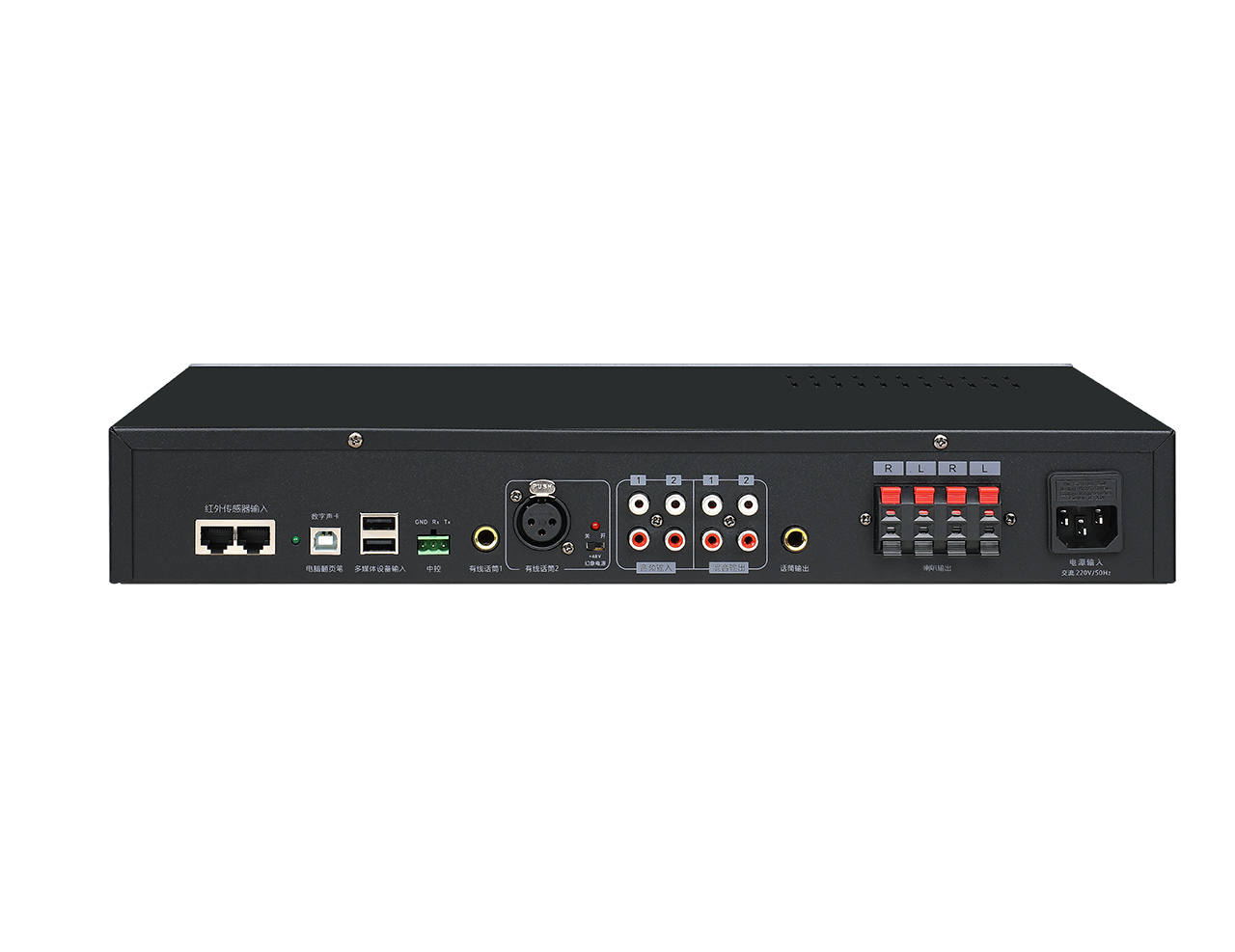

Input Interface

x2 RJ45 ports(connect Max.4 IR sensors); x2 audio inputs; x1 1/4"MIC in;
x1(48V phantom power)XLR input;x1 USB digital sound card;
x2 USB multimedia interfaces;
Output Interface

x2 mixing audio output; x1 Mic out; 8 sets of speaker ports

Compatible Unit & Parts

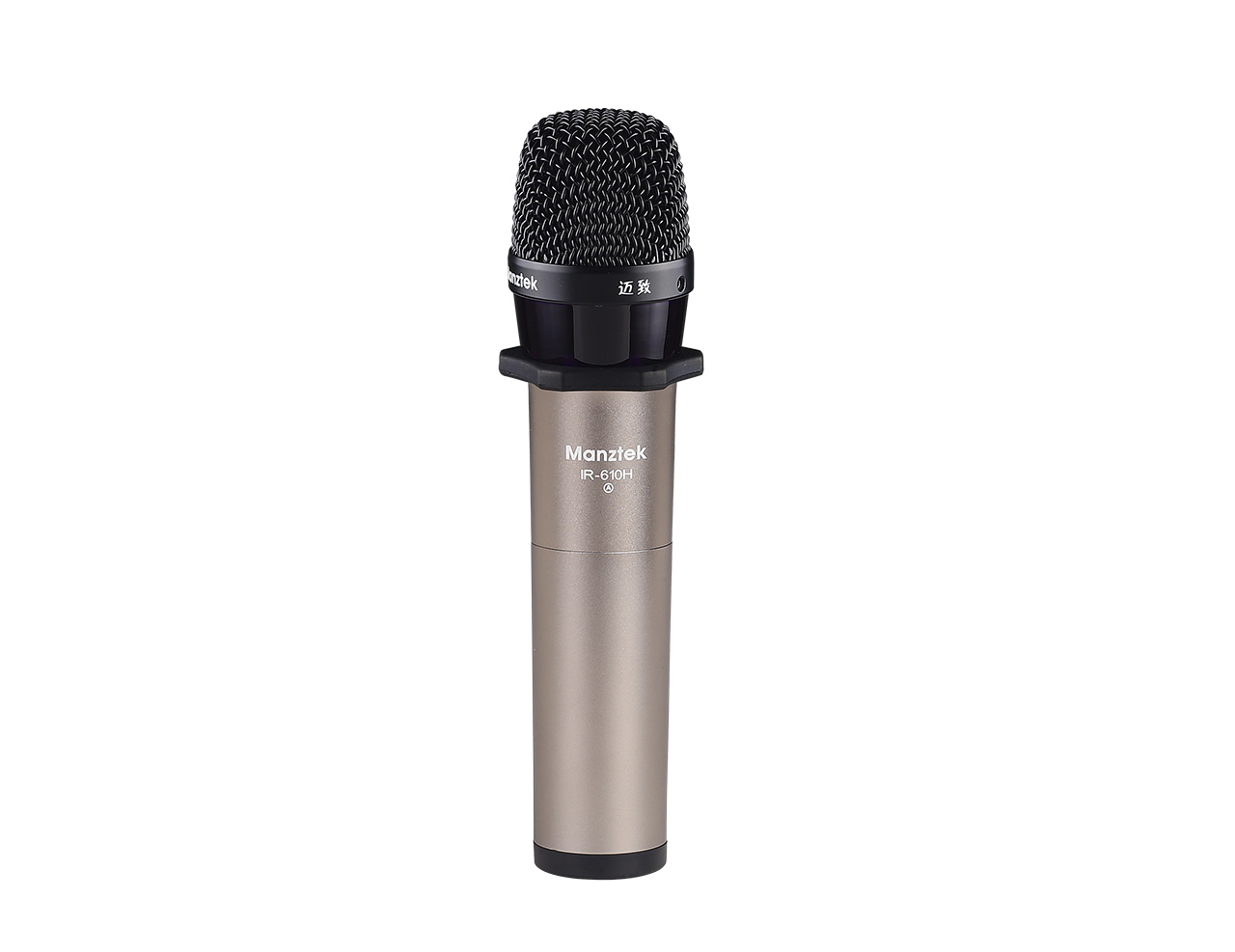

Handheld Mic
Pendent Mic

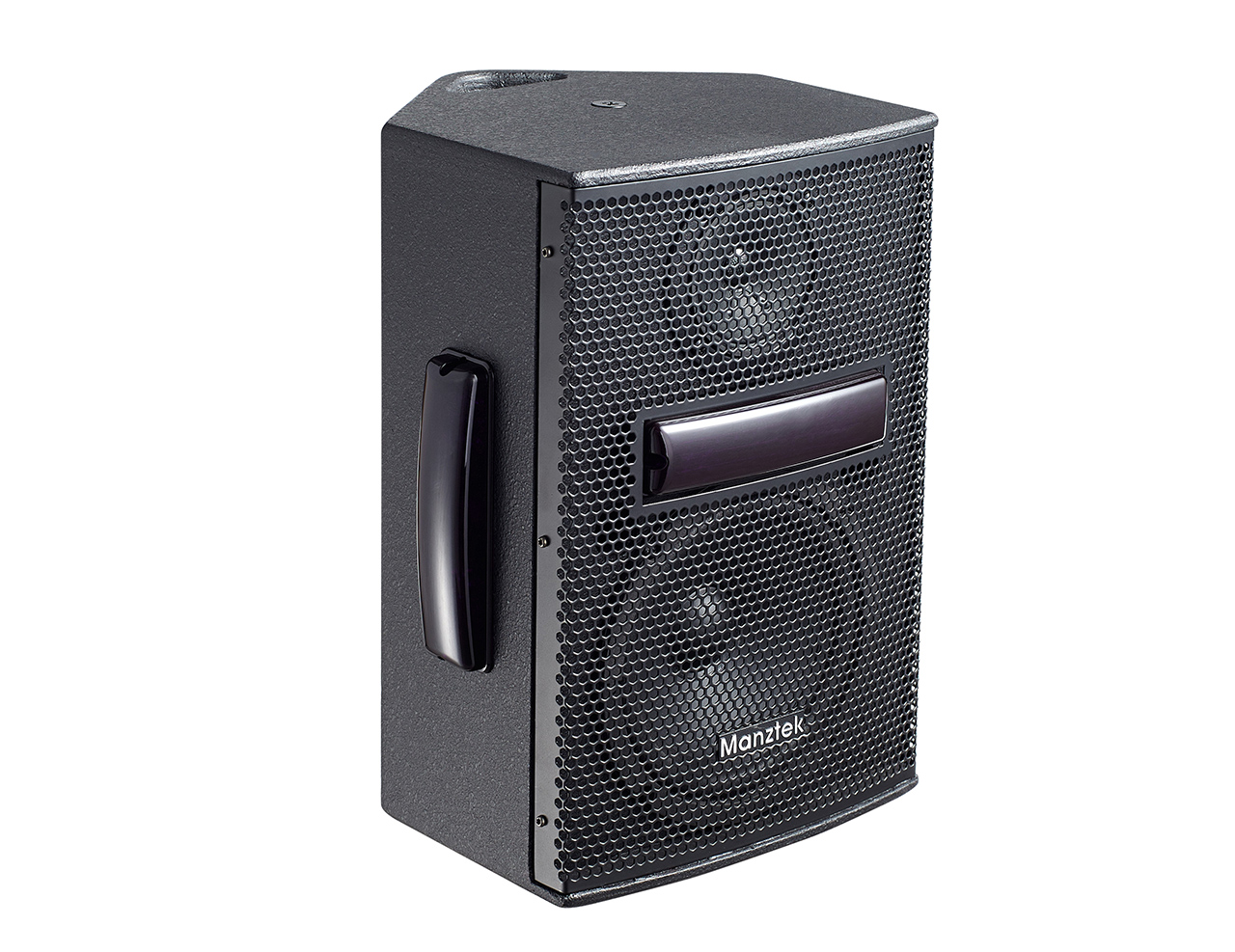

Speaker
