IR Wireless Microphone Kit

model:IR-601

SMART INFRARED WIRELESS SOUNDFIELD SYSTEM

Description:

● MAX. 6 infrared microphones running simultaneously without interference, especially suitable for group teaching.

● Microphone enters sleep mode automatically after 1 second of inactivity, and will be reactivated upon any movement is detected., ideal for students use.

● Cooperates with Video tracking device, real-time display of speaker’s activity, appropriate for video recording and automatic video tracking in classroom.

● Able to Connect with "active recorder" without echo.

● 6 different colored handheld microphones make management more convenient.

IR-520PT MICROPHONE

Wireless Mode

Infrared(850nm)
Selectable Frequency Channels

6
Capsule

Condenser ECM
Charging Mode

Charging cradle or USB-C charging
Battery

x1 AA rechargeable lithium-ion battery (3.7V) Full charge for 2 hours,and last for 6 hours
Size

51mm×84mm×26mm
Input Interface

3.5mm Mic
Material

Flame-retardant ABS
Others

Compatible with any Manztek receiver/amplifier;
Others-2

Built-in laser light,supports page flipping.

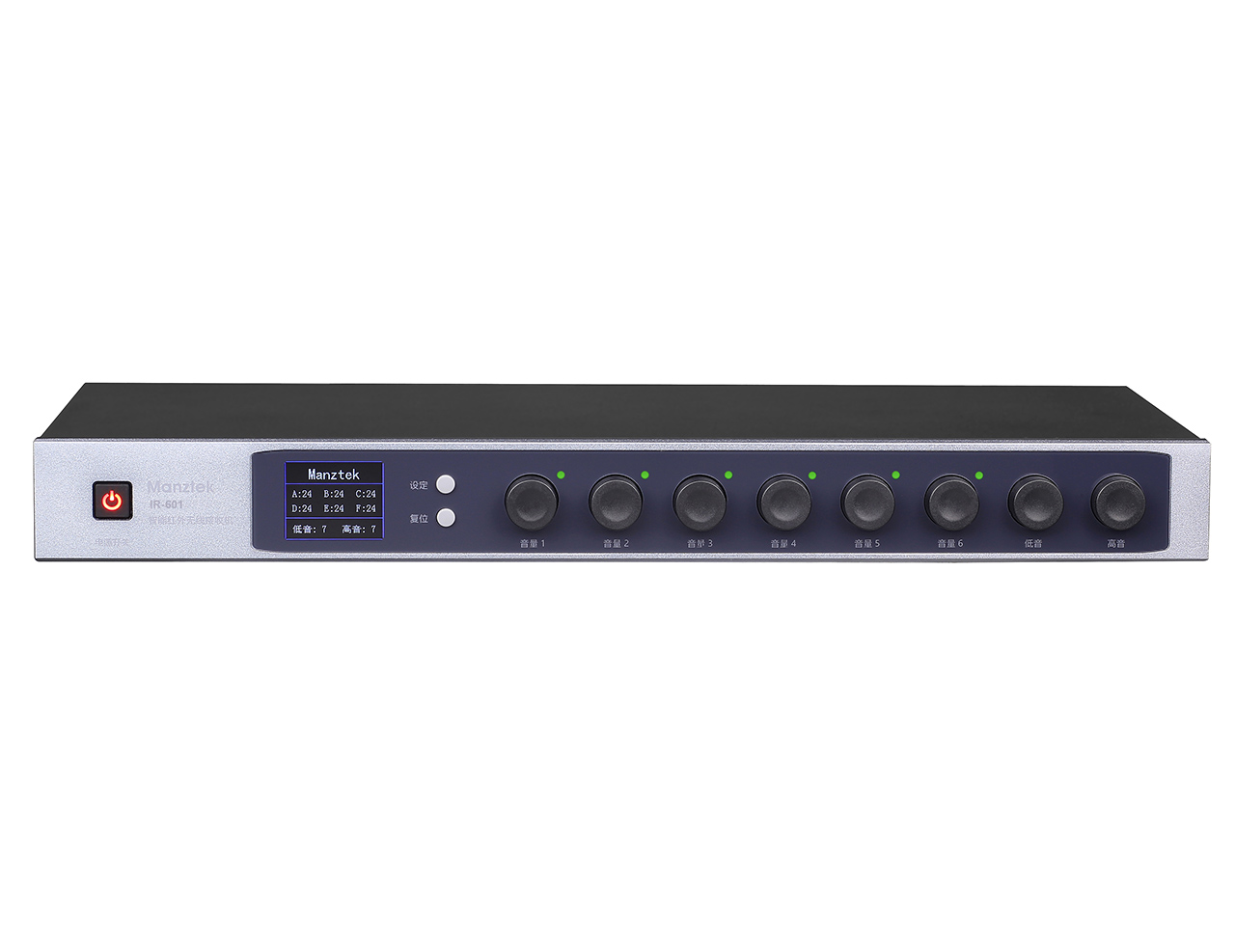

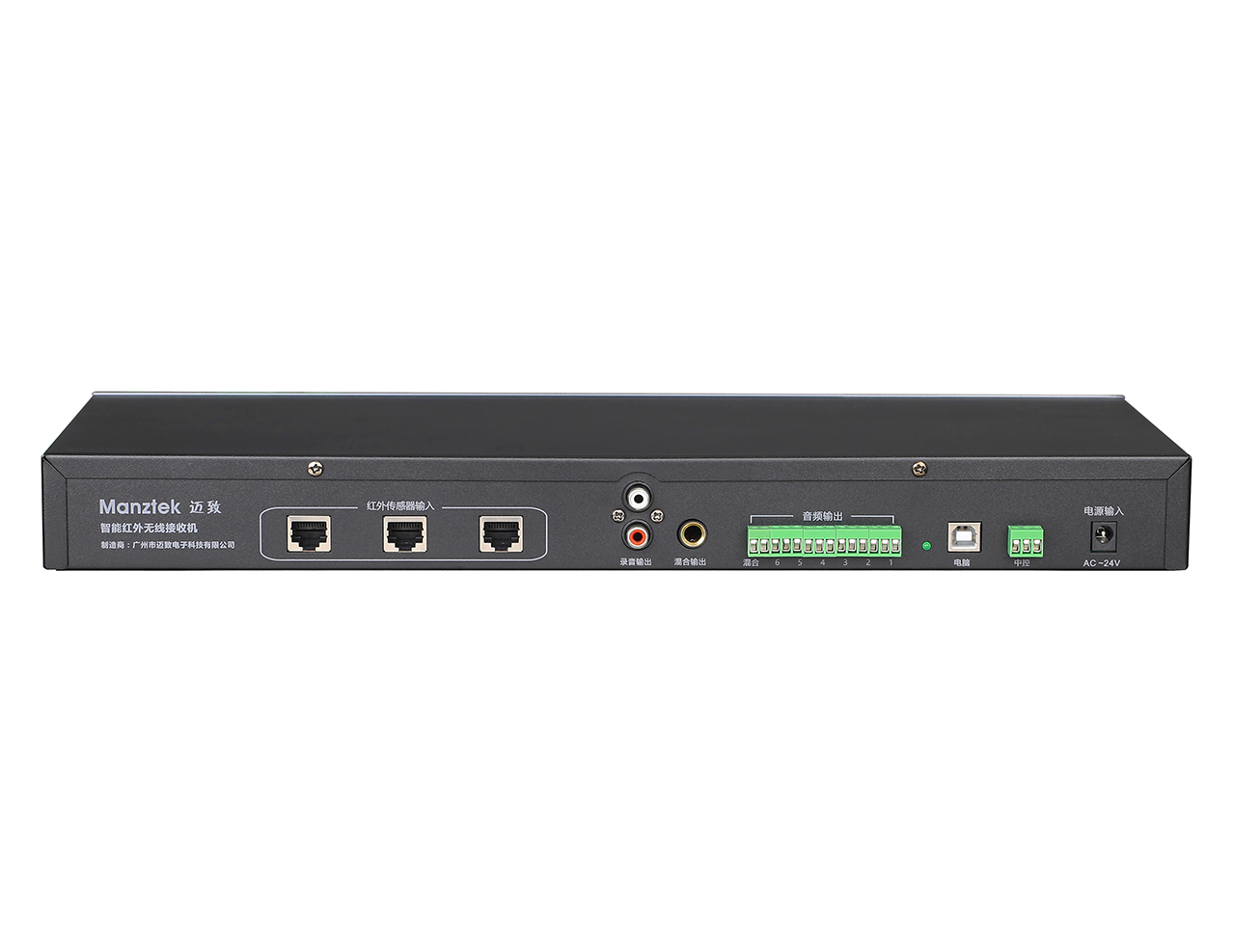

IR-601 Wireless Receiver Device

IR Wireless Channels

6 channels
Selectable Frequency

6
Frequency Response

50HZ-20KHZ±3dB
THD

<0.05%
S/N

100dB
Interface

x6 Independent channel outputs;x1 Mixing output;x1 USB
RS-232 control;Supports IR page-flipping controller;

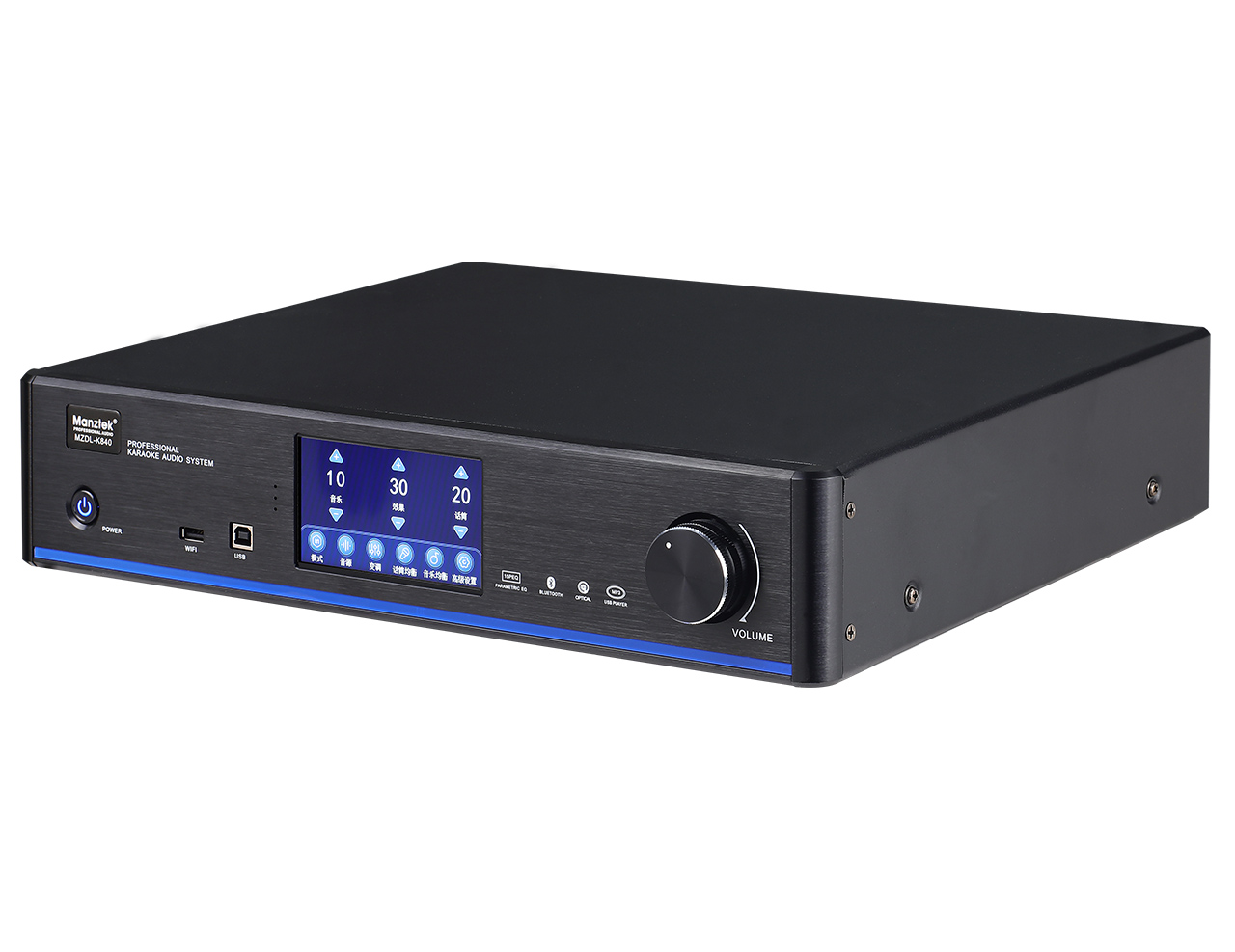

Power Amplifier MZDL-K840

Frequency Response

20HZ~20KHZ
Rated Power

2×400W(8Ω)
Input Interface

x2 Mic in； x2 line in；Bluetooth,x1 optical fiber；x1 coaxial;
Output Interface

x2 speaker columns (4Ω-16Ω);
Features

Touch-operable LCD screen,driver-free USB-operation software；
WIFI wireless control (optional)；
Supports RS232 serial port control and infrared control simultaneously.

Compatible Unit & Parts

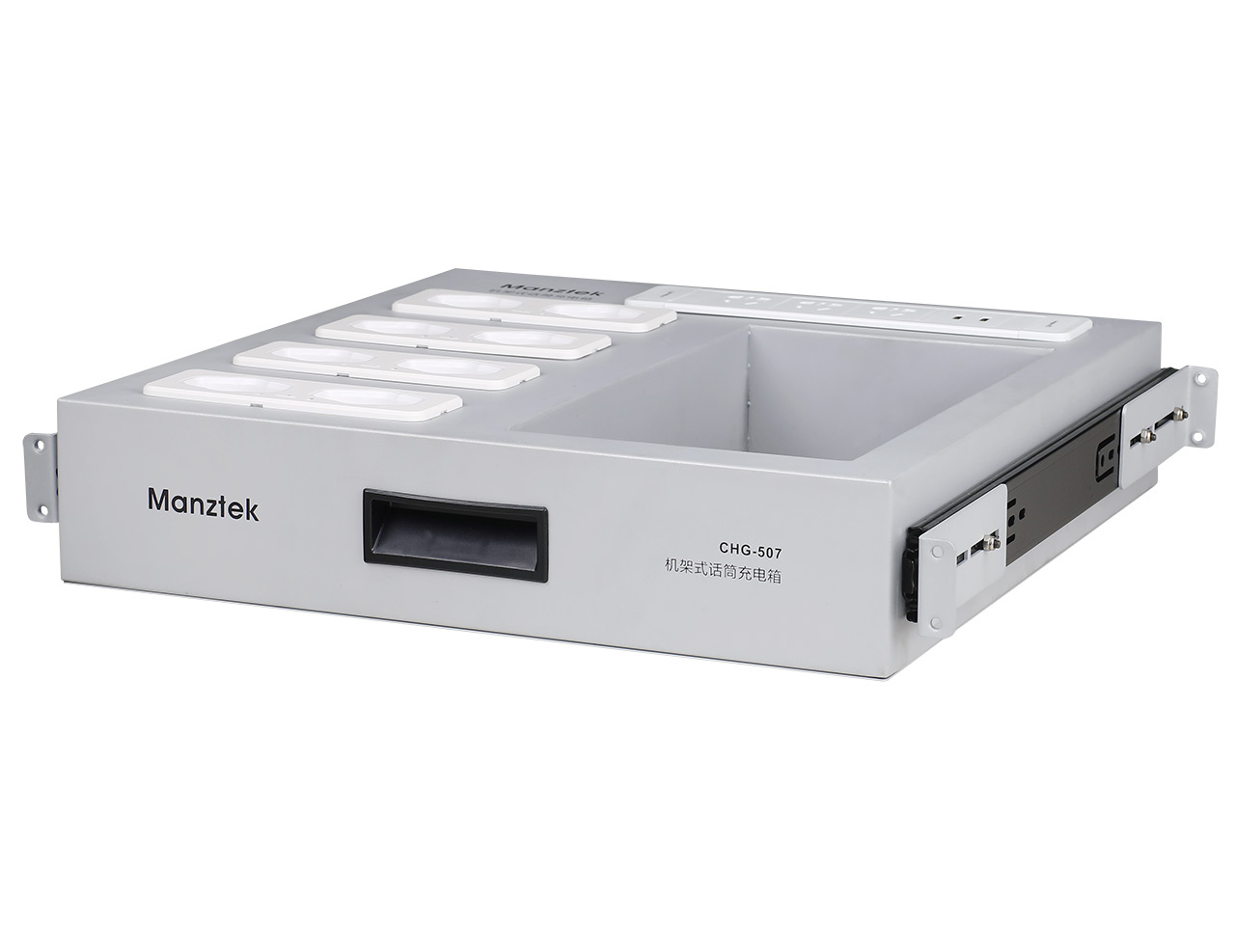

Charging Box
Pendent Mic

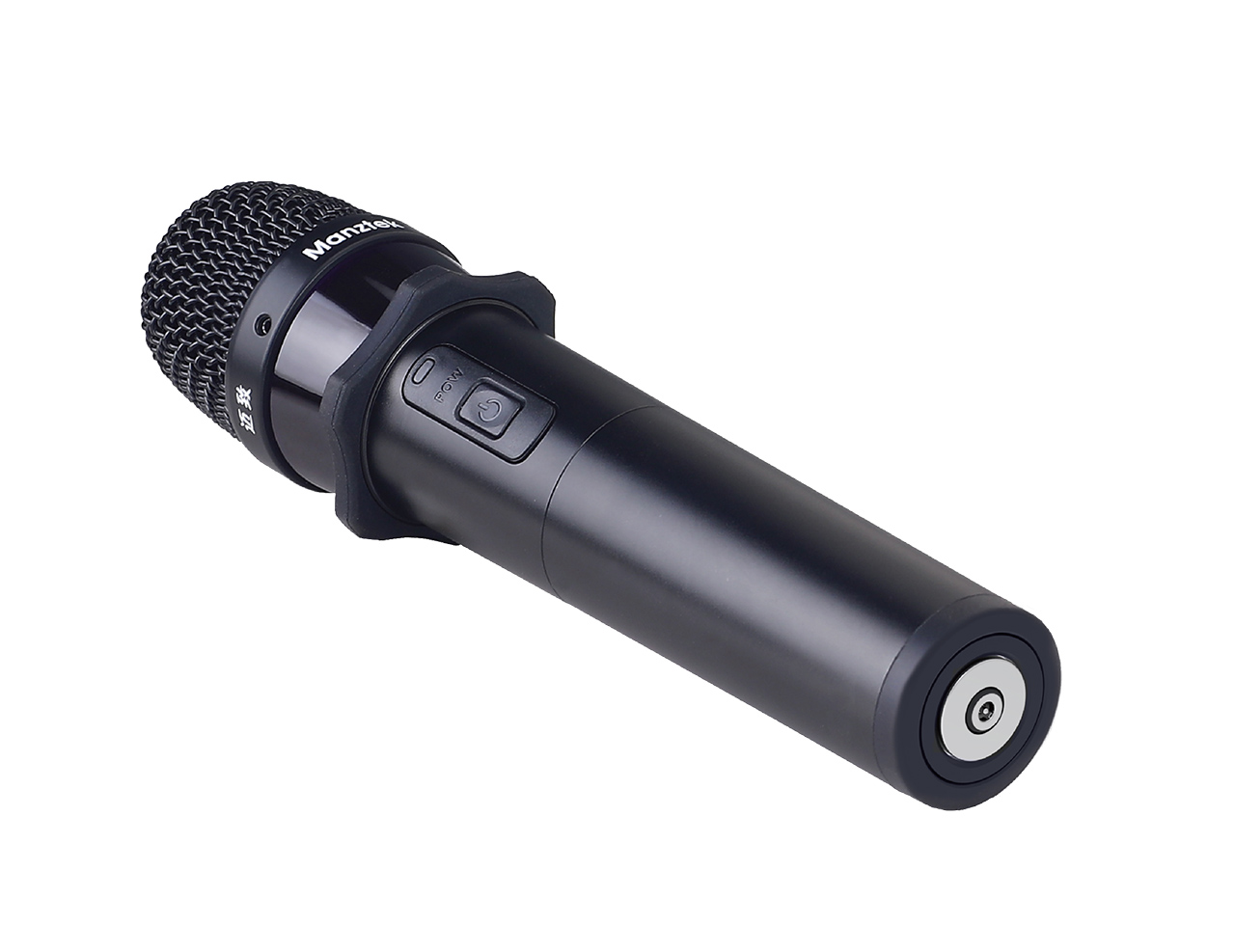

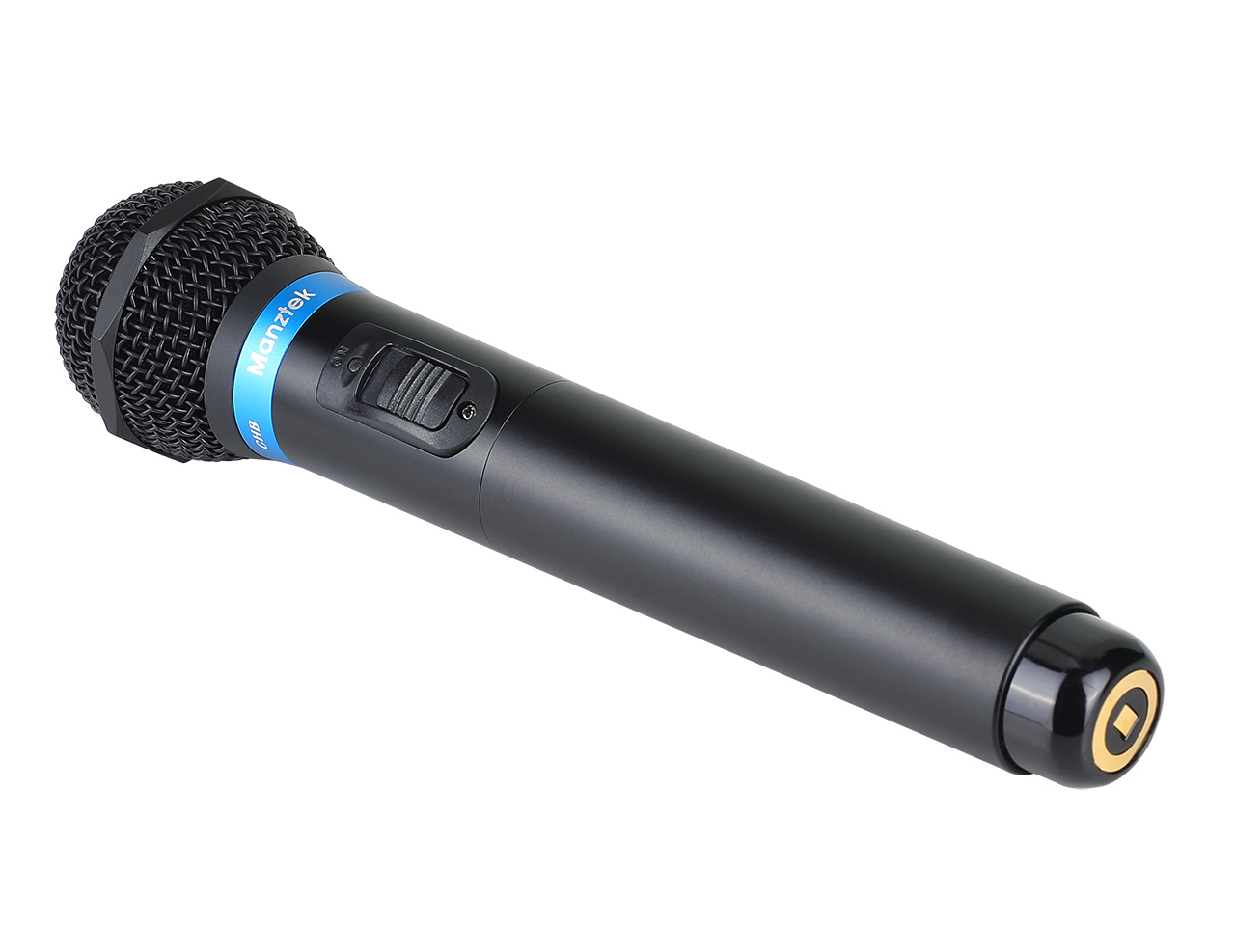

Handheld Mic
Handheld Mic
