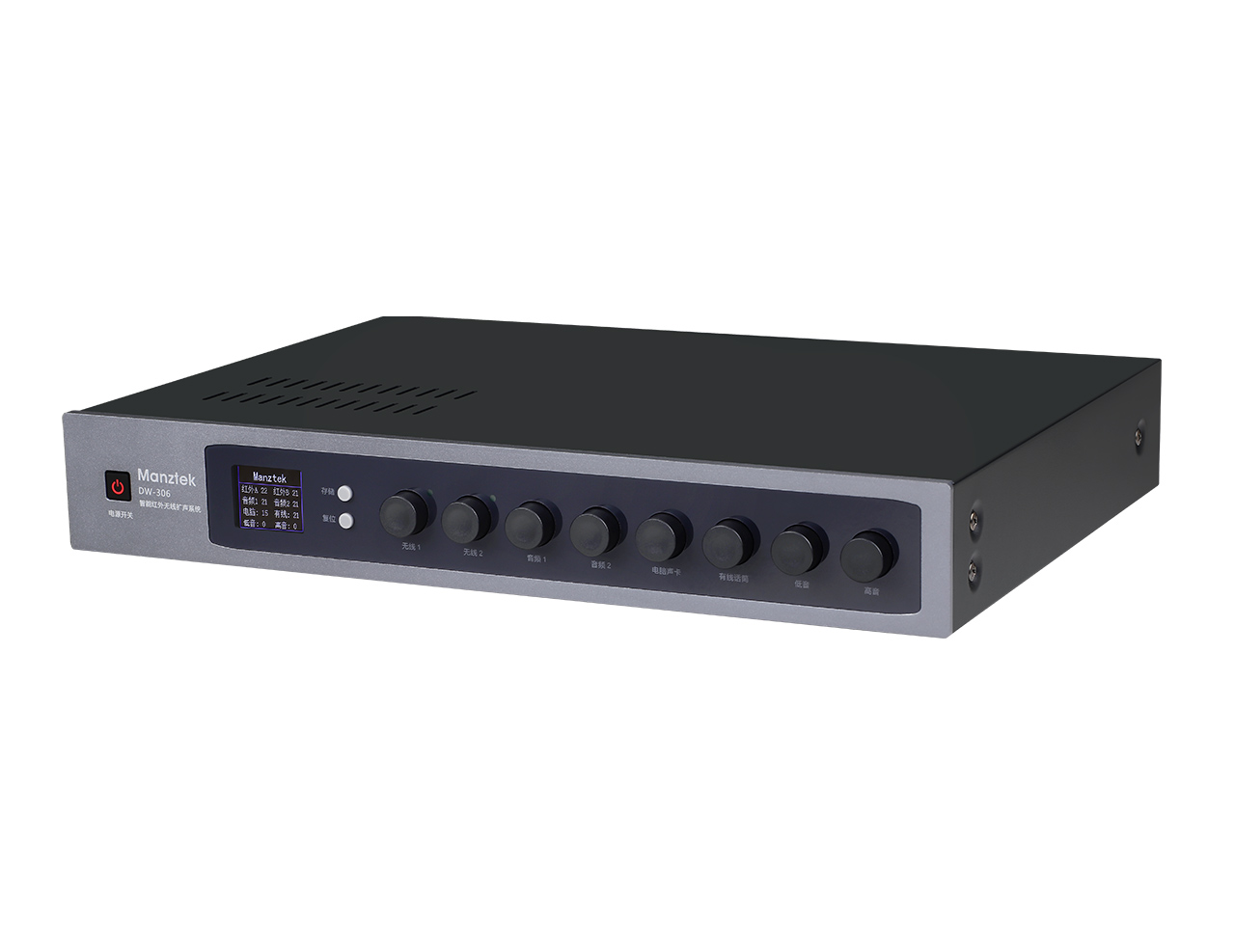

● 3-channels design, allowing 2 infrared microphones and 1 infrared flipping remote controller running simultaneously (touchscreen writing, red/green laser, PPT flipping).
● Advanced IPM power management technology. Microphone enters sleep mode automatically after 1 second of inactivity, and will be reactivated upon any movement is detected.
● Supports USB camera input.
● Built-in digital sound card which enables recording or online broadcasting
● Built-in IR sensor to loudspeakers for much easier installation
● Rated output power: (8Ω) 4x70W; (4Ω) 4x130W, goes with Max. 8 speakers.
● Applicable scene: Classrooms less than 400sqm, various types of university classrooms
3 channels
3
<0.05%
50Hz~20KHz±3dB
≥78dB(MIC1.2),≥80dB(LINE),≥98dB(IR MIC)
100dB
±0.005%(-10℃-40℃)
(8Ω)4×70W:(4Ω)4×130W
20mV(MIC1.2),700mV (LINE)
22KΩ(MIC1.2),390Ω(LINE)

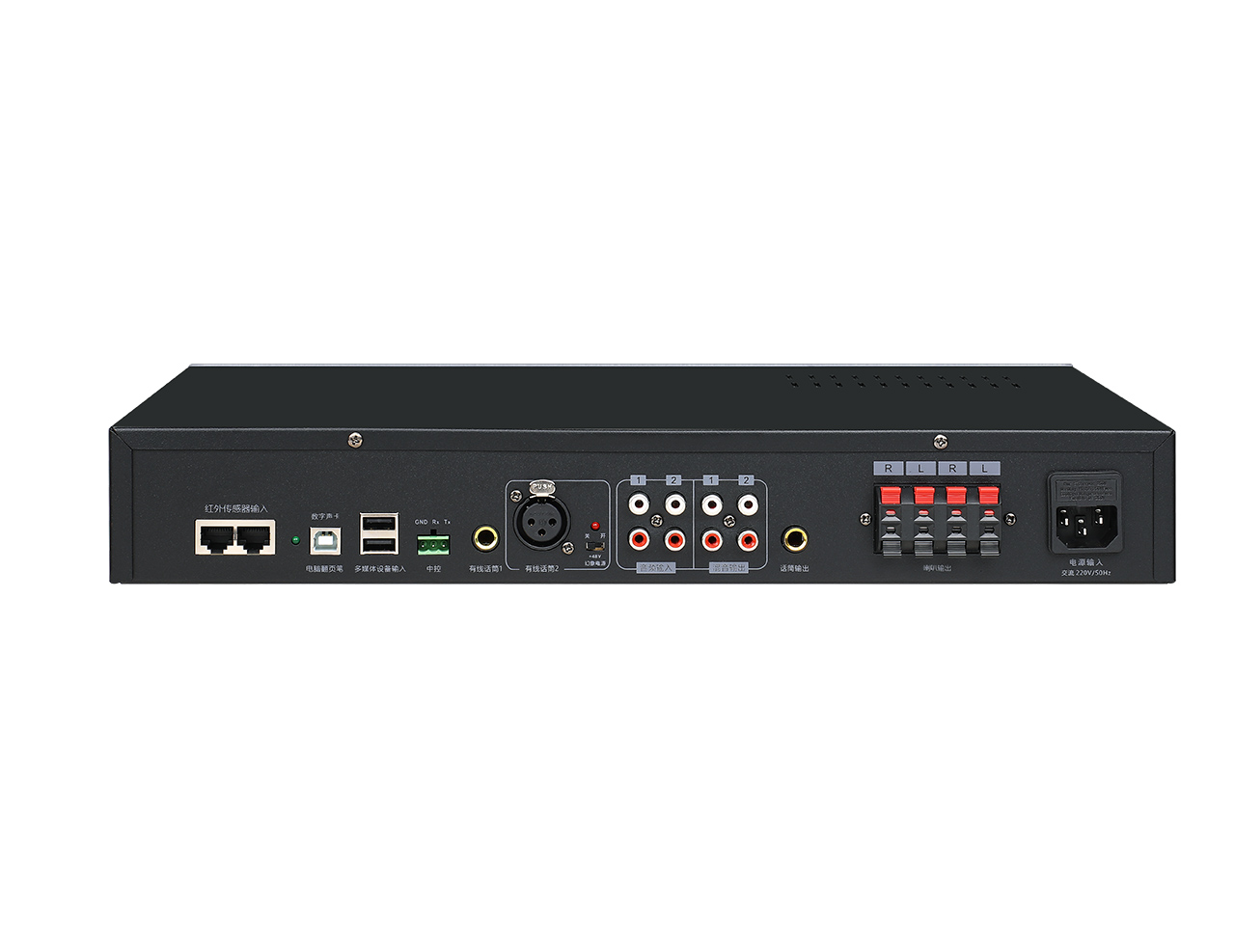

x2 RJ45 ports(connect Max.4 IR sensors); x2 audio inputs; x1 1/4"MIC in;
x1(48V phantom power)XLR input;x1 USB digital sound card;
x2 USB multimedia interfaces;
x2 mixing audio output; x1 Mic out; 8 sets of speaker ports
Infrared(850nm)
6
Condenser ECM
Charging cradle or USB-C charging
x1 AA rechargeable lithium-ion battery (3.7V) Full charge for 2 hours,and last for 6 hours
51mm×84mm×26mm
3.5mm Mic
Flame-retardant ABS
Compatible with any Manztek receiver/amplifier;
Built-in laser light,supports page flipping.

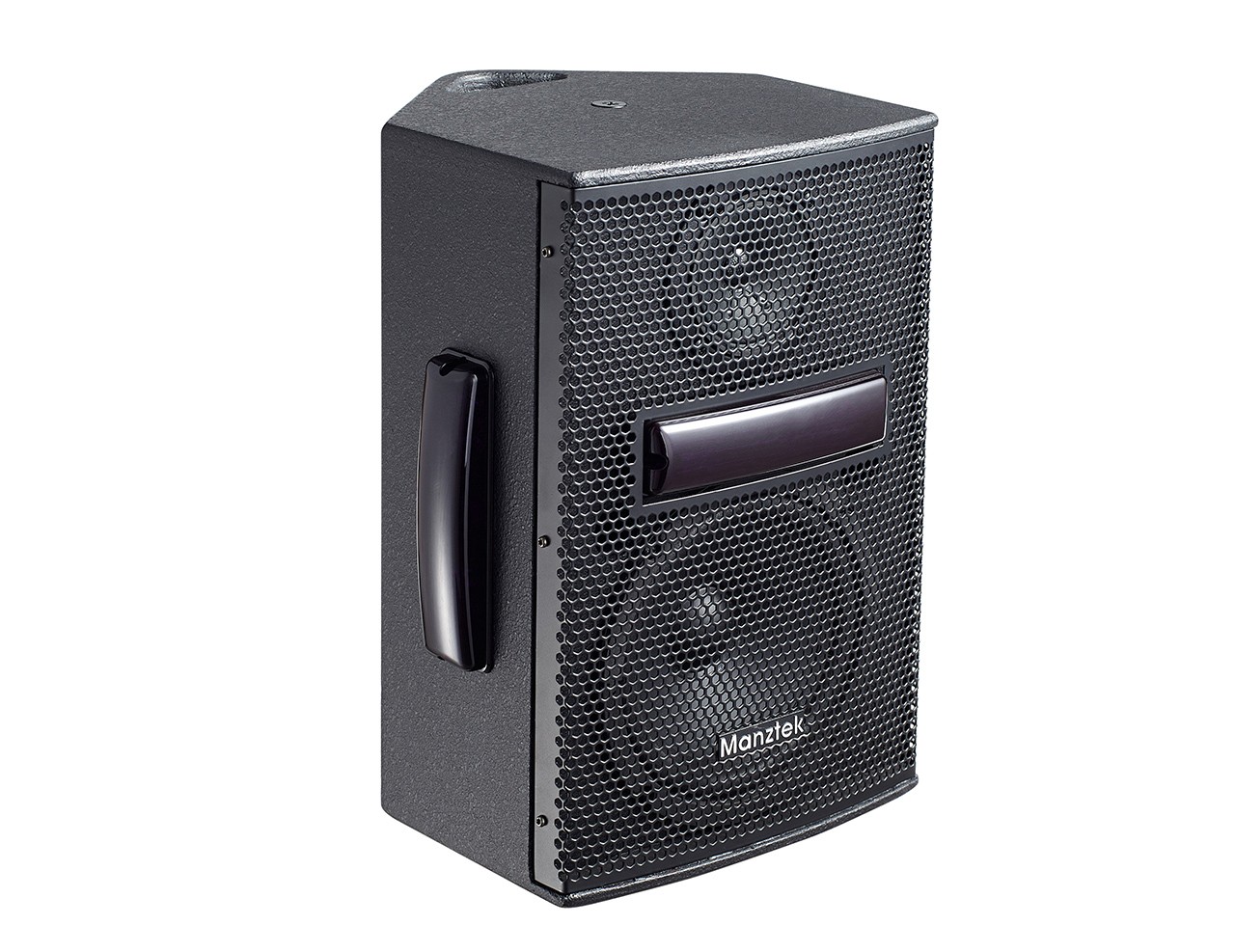

75Hz~15KHz±3dB
3.5"×1
6.5"×1
90°H×80°V
80
60W/100W
93dB/1W/1M
93dB
215×230x330mm
5.4KG
12mm solid wood

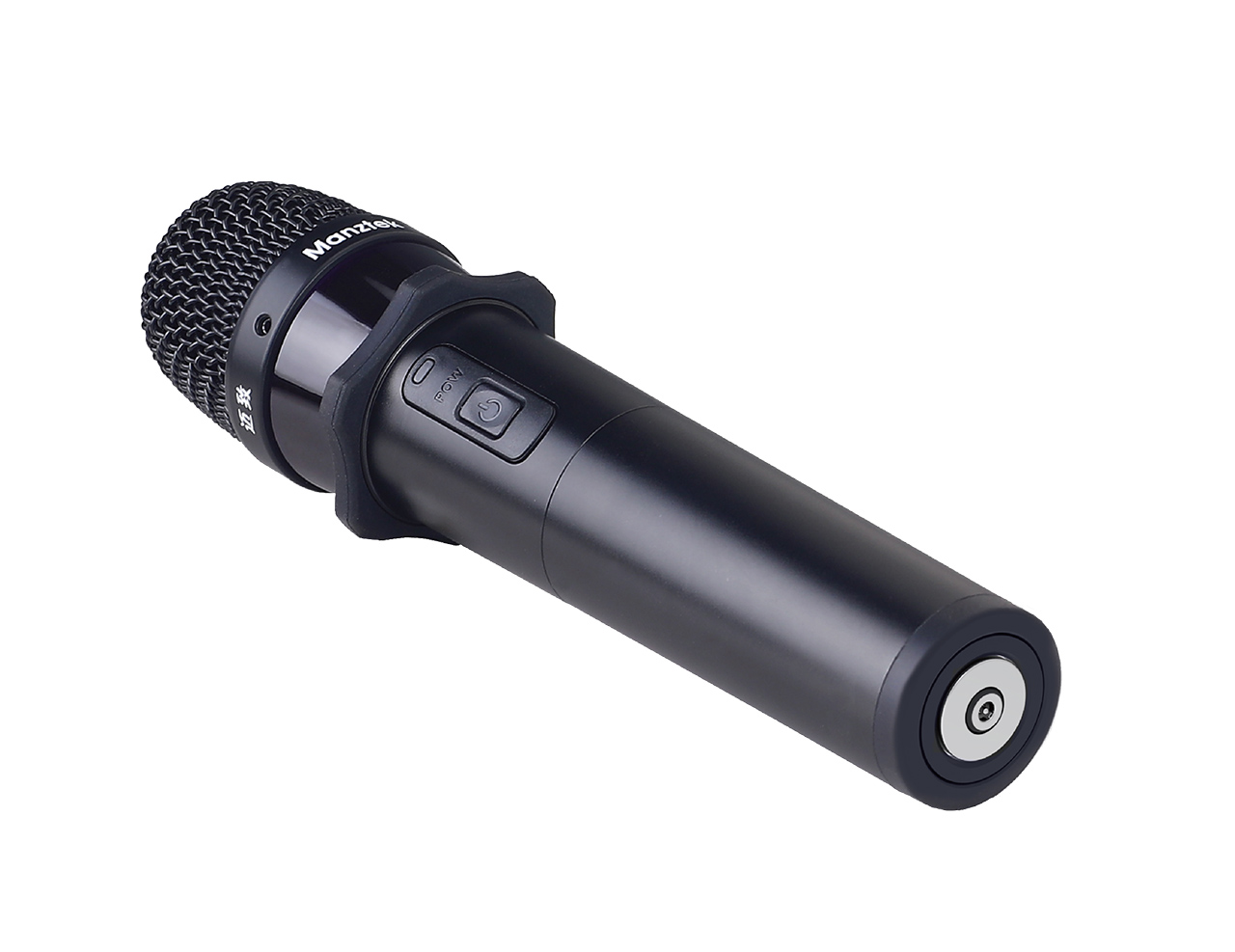

Handheld Mic

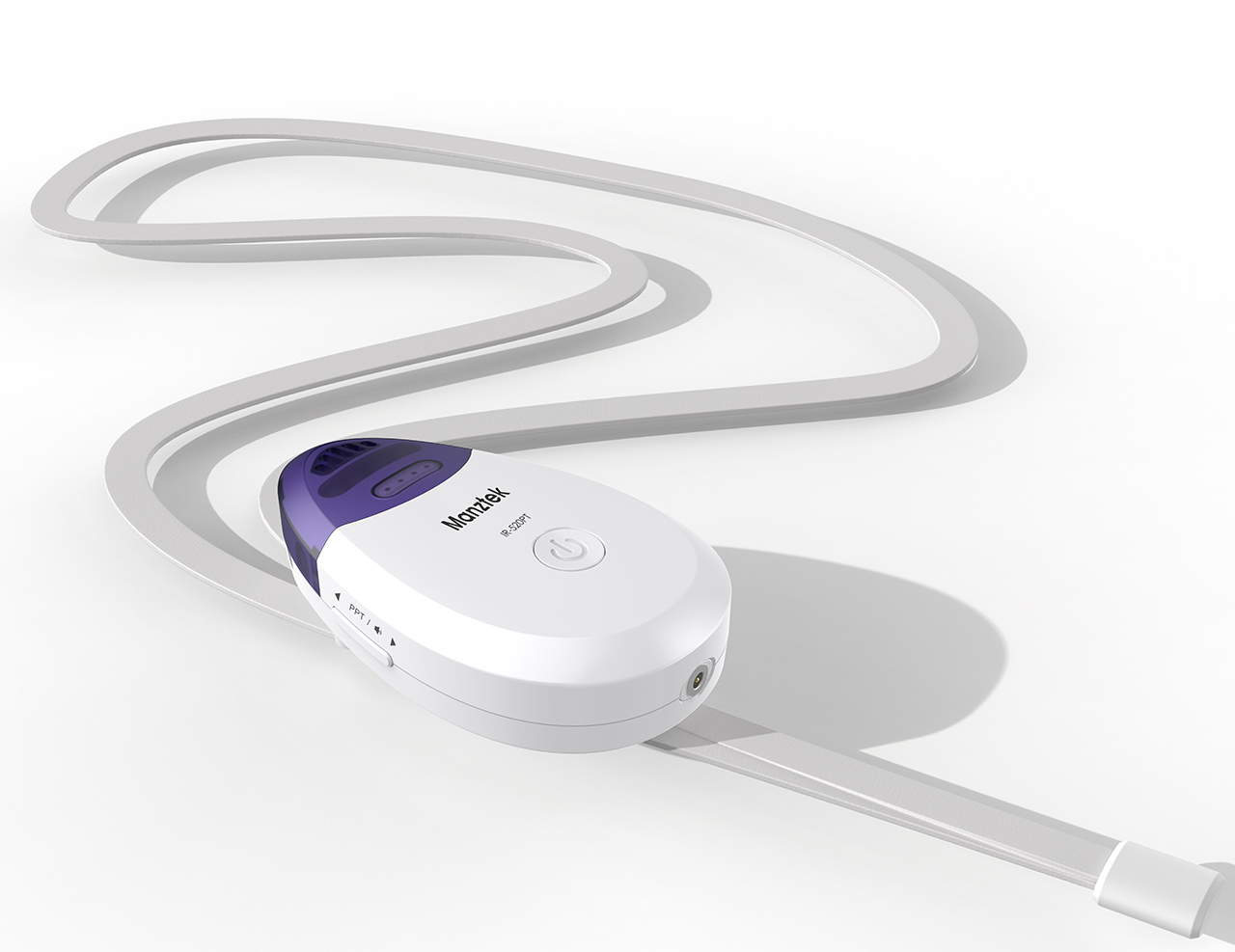

Pendent Mic

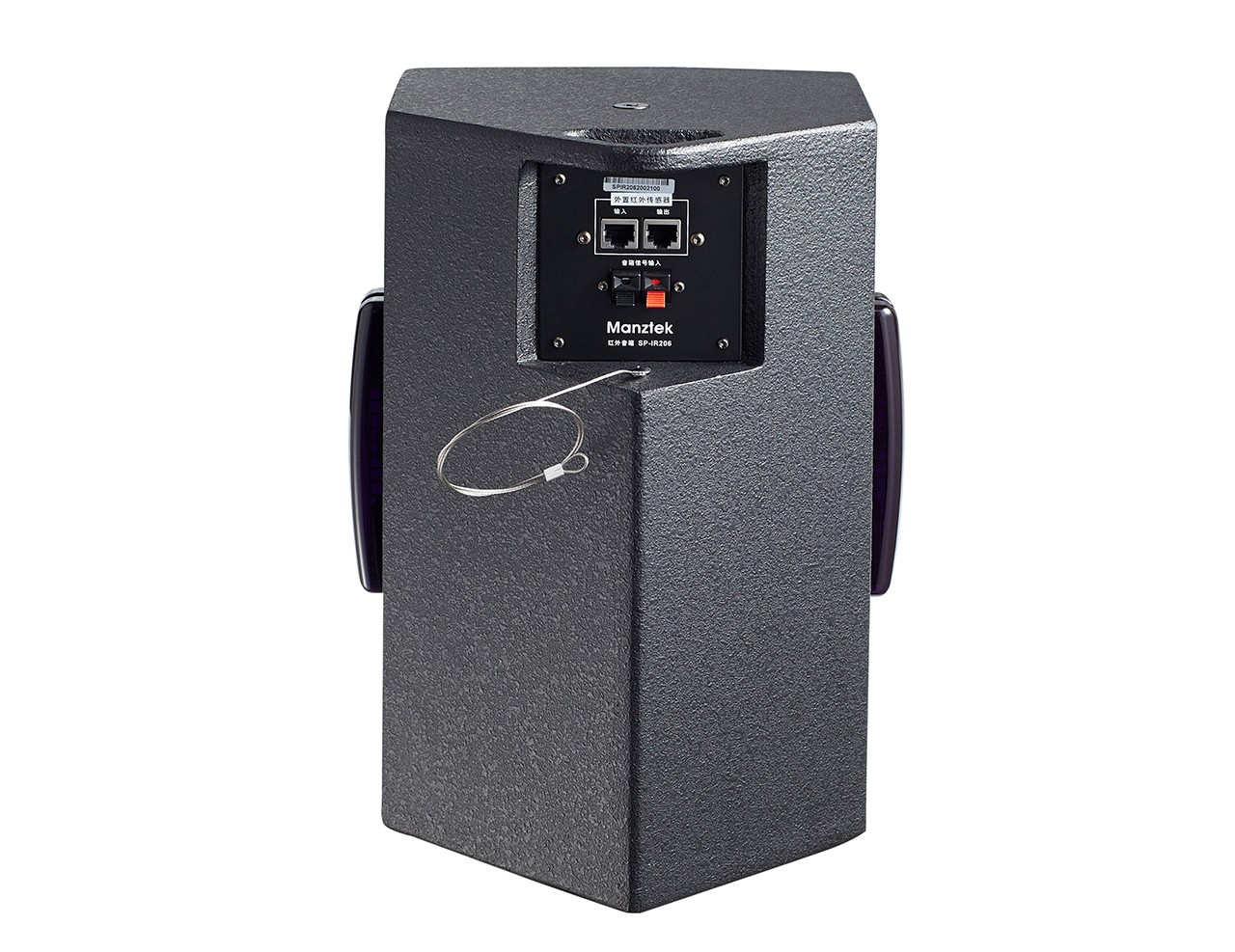

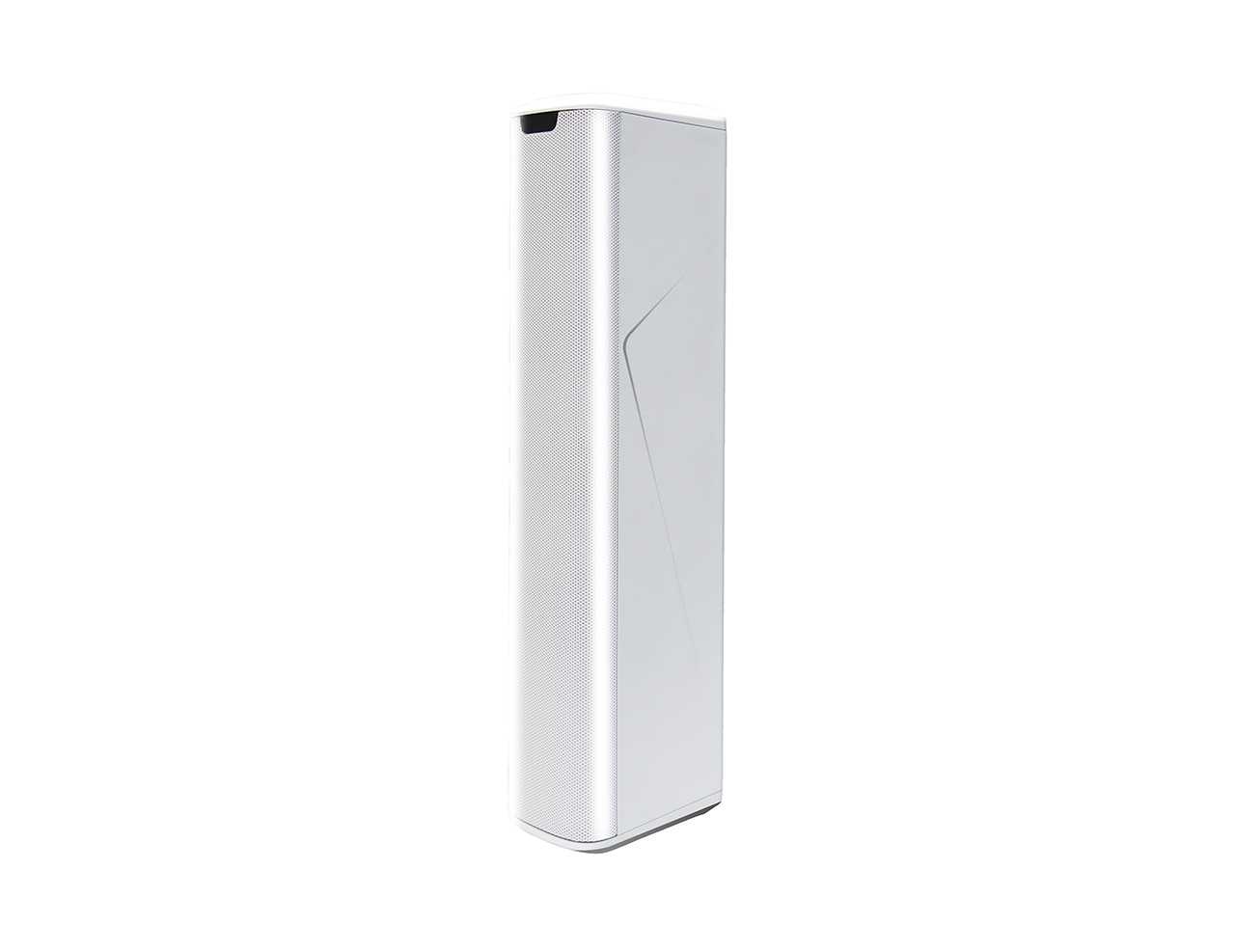

Speaker

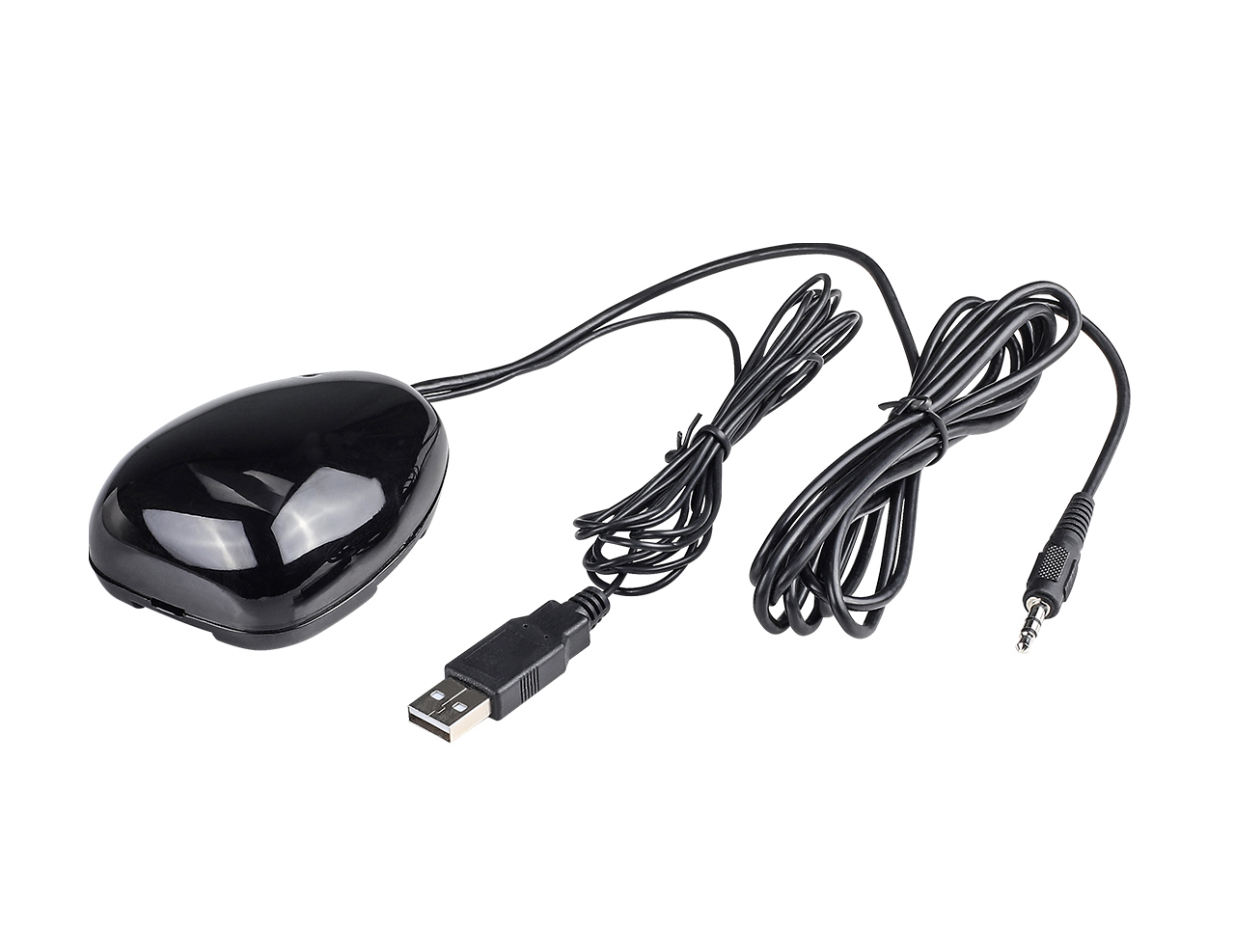

Transmitter
