IR Wireless Microphone Kit

model:IR-PAS9/IR-PAS9SX

ALL-IN-ONE INFRARED WIRELESS SOUNDFIELD SYSTEM

Description:

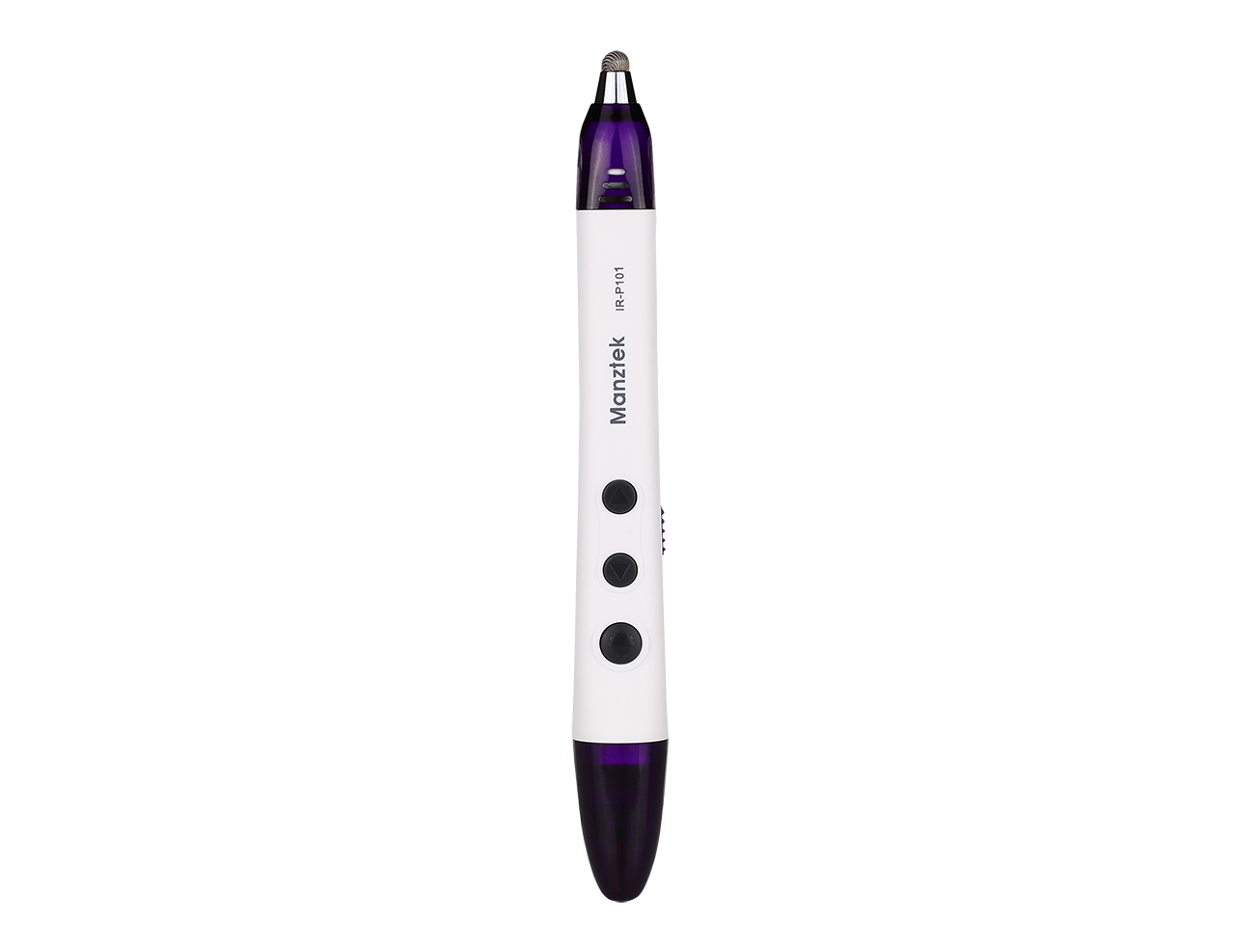

● 3-channels design, allowing 2 infrared microphones and 1 page flipping remote controller running simultaneously (touchscreen writing, red/green laser, PPT flipping).

● All-in-one design,built in IR receiver & IR sensor, feedback suppressor,amplifier,speakers& tone adjuster

● Easy installation. Only a single screw needed for installation,Add-on falling-proof safety steel wire ensure 100% safety.

● Supports RS232 serial port.

● Built-in digital sound card which enables recording or online broadcasting

● Applicable scene: Kindergartens, primary schools, middle schools, vocational schools, classroom less than 100sqm

IR-520PT MICROPHONE

Wireless Mode

Infrared(850nm)
Selectable Frequency Channels

6
Capsule

Condenser ECM
Charging Mode

Charging cradle or USB-C charging
Battery

x1 AA rechargeable lithium-ion battery (3.7V) Full charge for 2 hours,and last for 6 hours
Size

51mm×84mm×26mm
Input Interface

3.5mm Mic
Material

Flame-retardant ABS
Others

Compatible with any Manztek receiver/amplifier;
Others-2

Built-in laser light,supports page flipping.

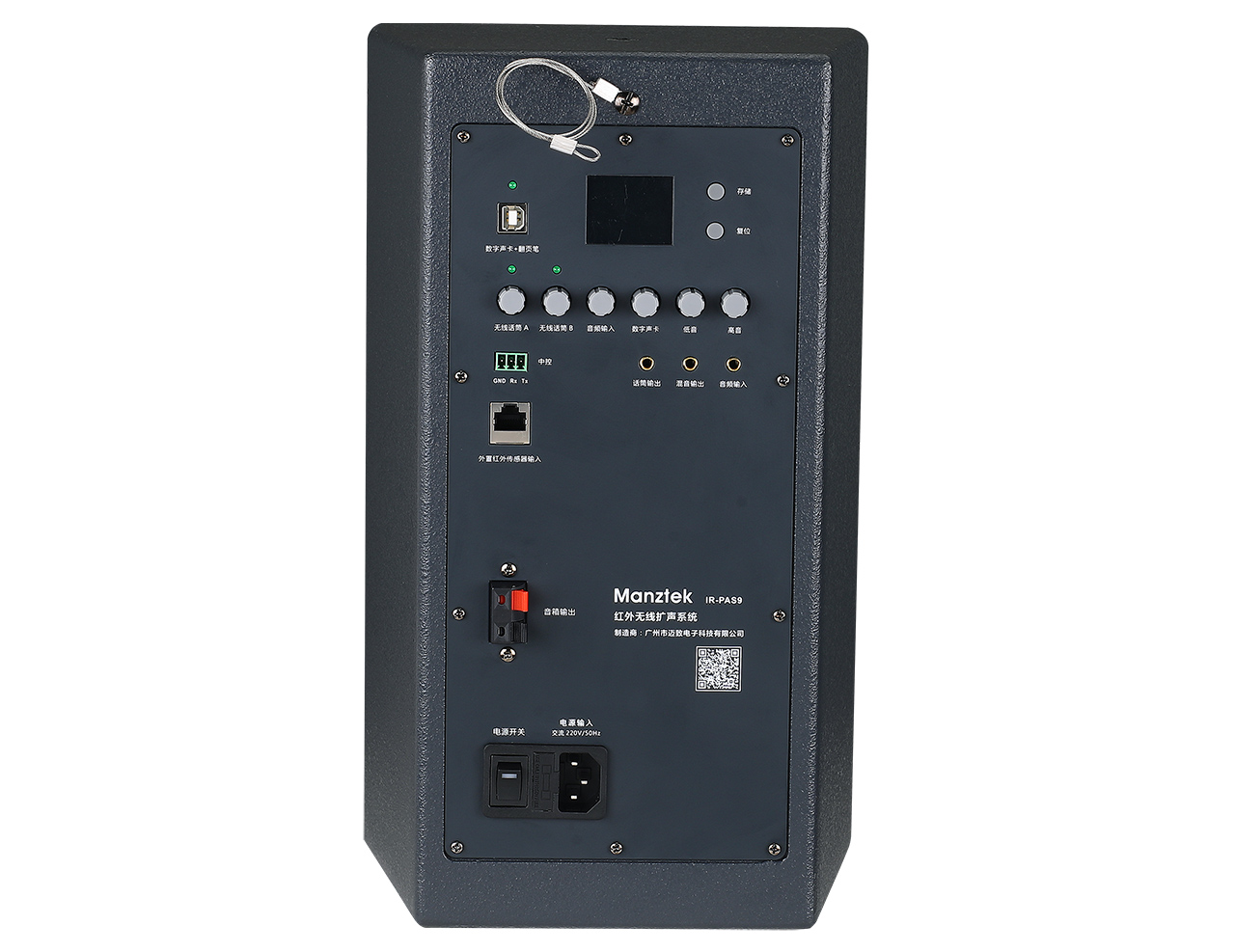

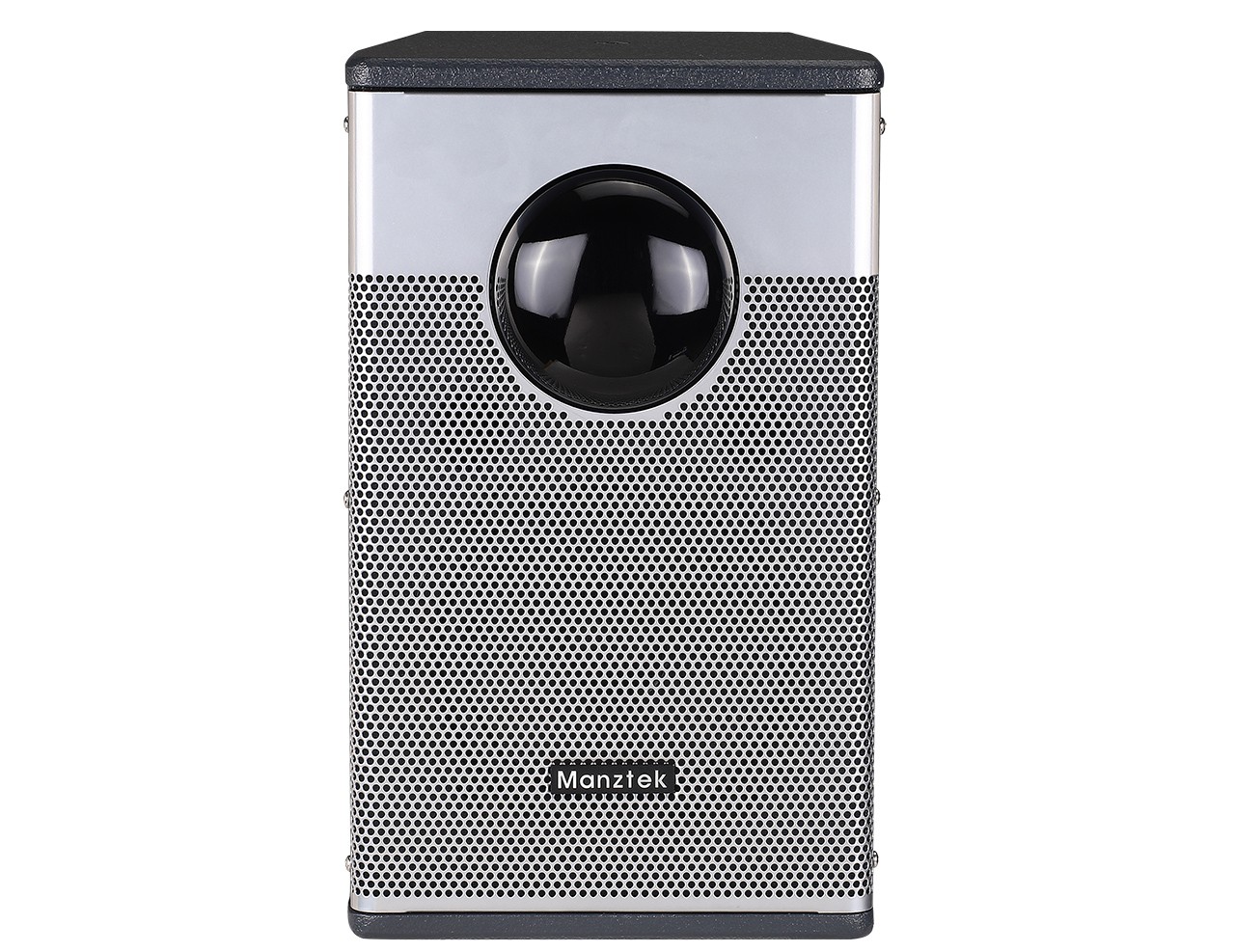

IR-PAS9 ACTIVE SPEAKER

Built-In Modules

Class D Digital Amplifier,IR Receiver&Sensors
Feedback Suppressor,Speaker
Speaker Unit

6.5"×1
Built-In Infrared Sensors

1
Infrared Wireless Channels

3-Channels,2 IR Microphones and 1 IR Page-Flipping Controller.
Frequency Response

50Hz-20KHz±3dB
THD

≤0.05%
S/N

≥78dB(MIC1.2),≥80 dB(LINE),98dB(IR MIC)(A-weighted)
Working Area

≥100㎡
Dynamic Range

100dB
Frequency Stability

±0.005%(-10℃-40℃)
Rated Power

≥Max2x40W@8Ω
Input Sensitivity

1.5mV (MIC):150mV (LINE)
Input Impedance

2KΩ(MIC):47Ω(LINE)
Input Interface

x1 RJ45(can connect 2 infrared sensors); x1 RCA Audio In;
Output Interface

x1 USB; 1 Mixing Audio Out; x1 Independent Microphone Out; x1 Speaker;
Housing Material

12-Layers Solid Wood

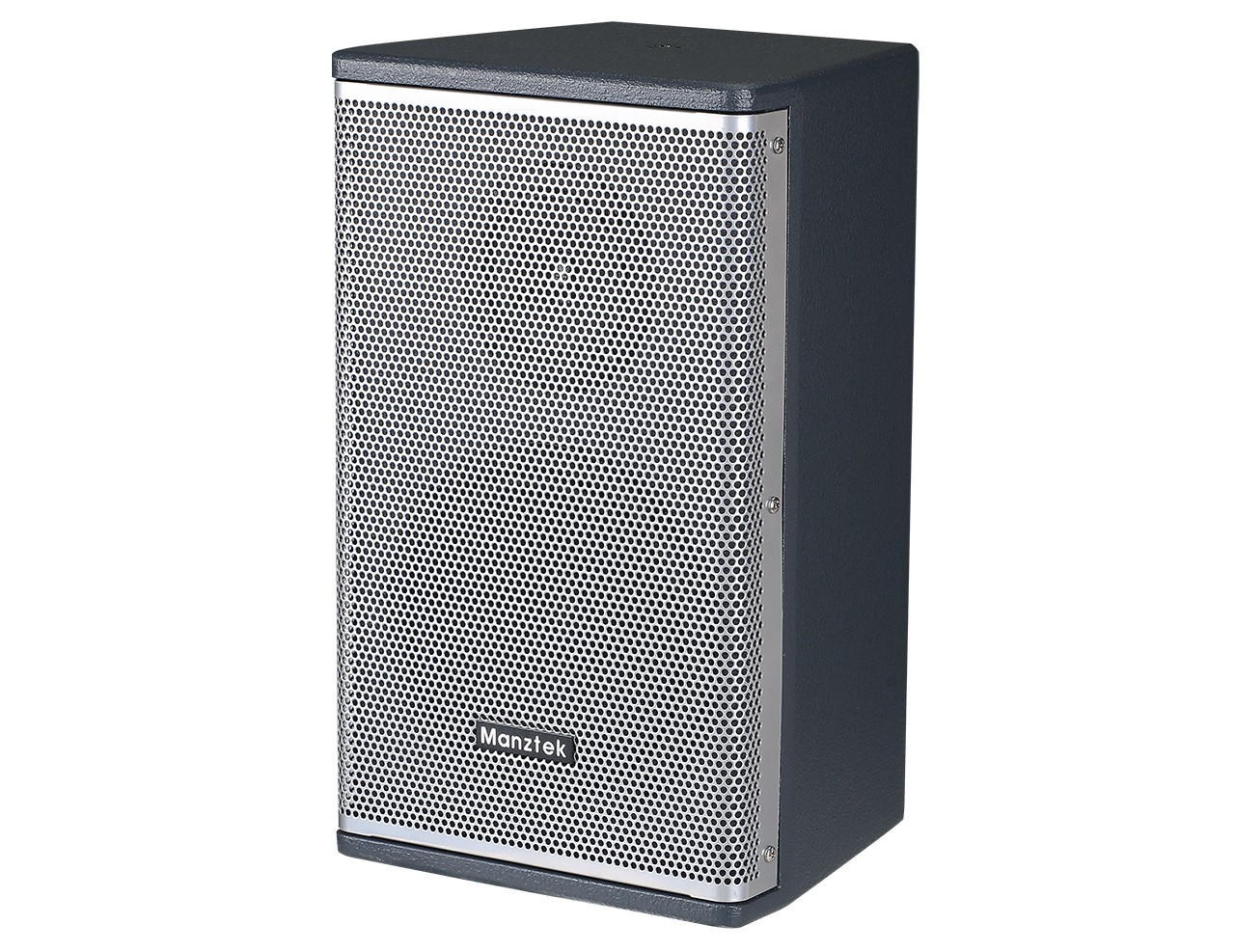

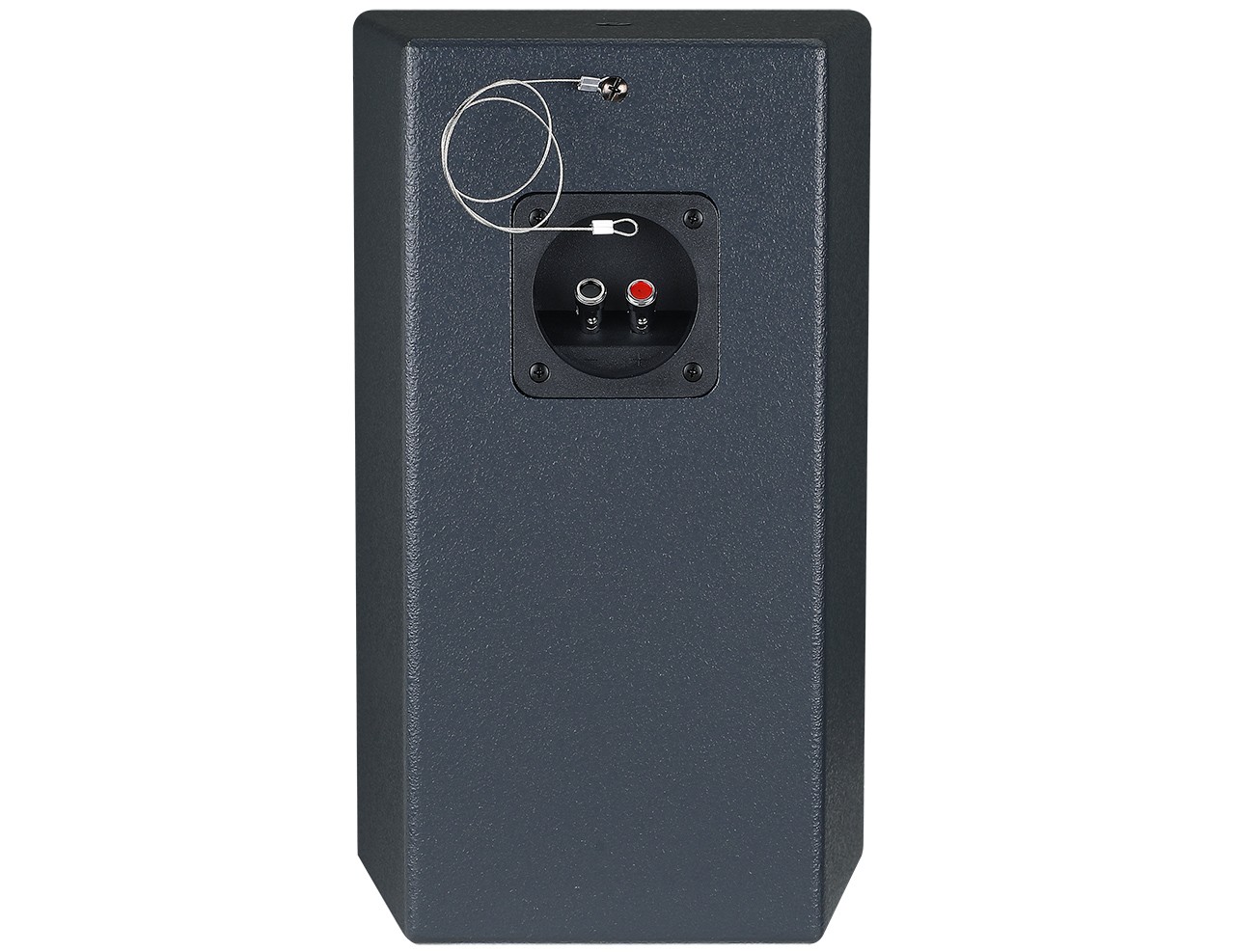

SP-29 Passive Speaker

Frequency Response

80Hz-20KHz(±3dB)
High-pitched Unit

3.5"×1
Low-pitched Unit

6.5"×1
Effective Angle (H×V)

90°H×80°V
Impedance

80
Power (Rated/Peak)

60W/100W
Sensitivity

93dB/1W/1M
dB SPL

93dB
Size

215×230x330mm
Weight

5.2KG
Housing Material

12mm solid wood

Compatible Unit & Parts

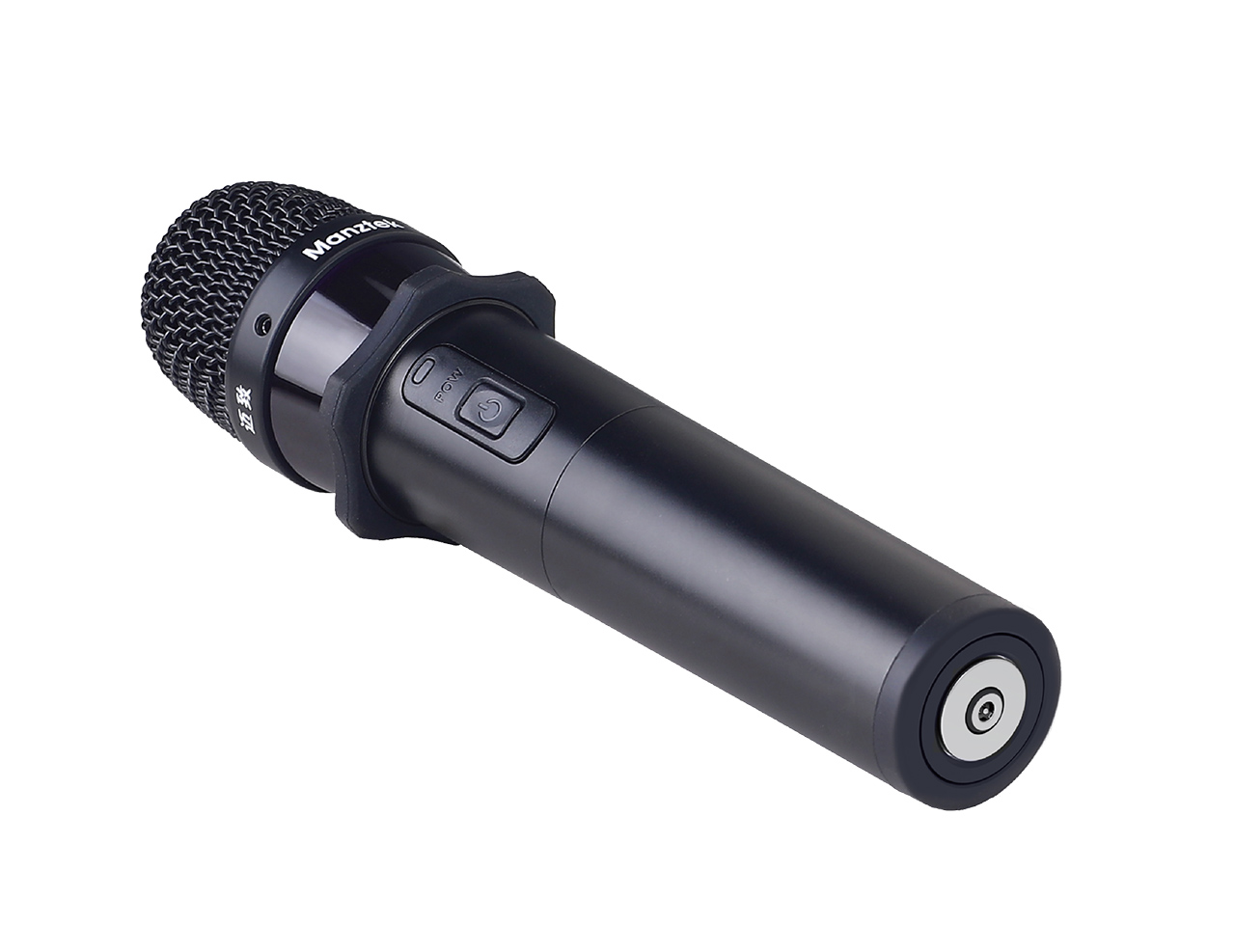

Handheld Mic

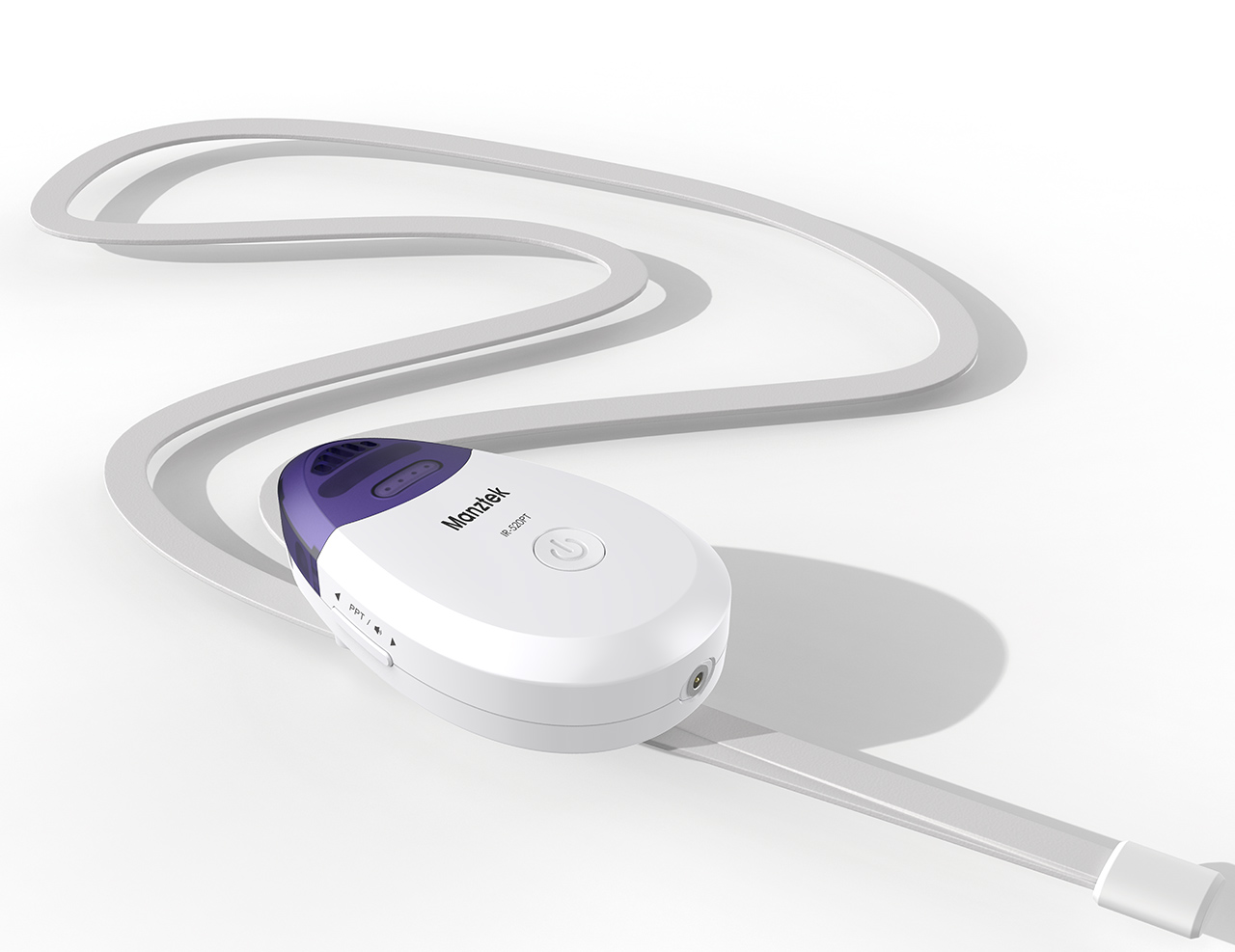

Pendent Mic

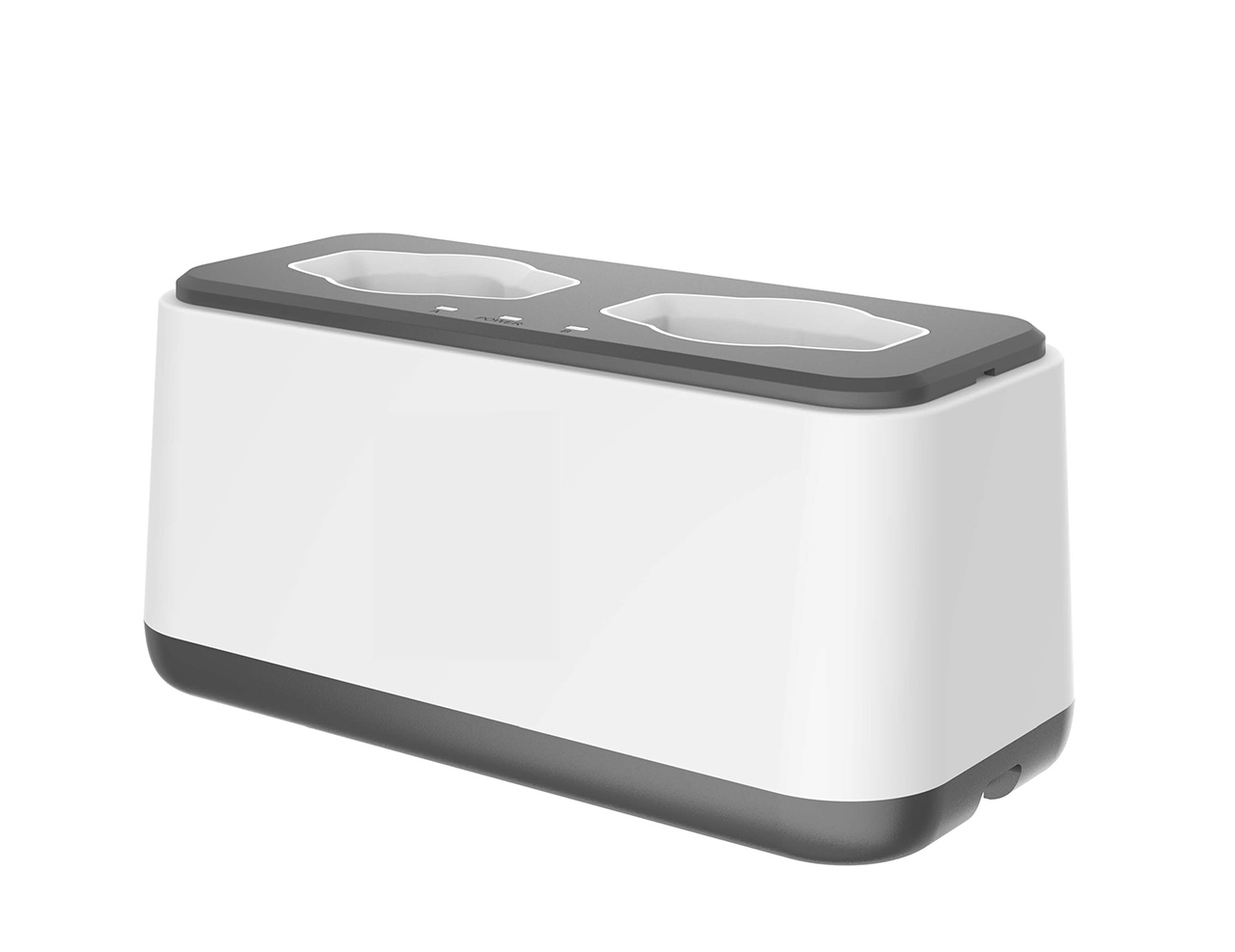

Charging Cradle
